Professional Automatic paprika seeds oil exactor paprika seeds oil press exacting machine

FOB Reference Price:Get Latest Price
$1,000.00 - $5,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
YL-80
Power(W):
5.5kw
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 8 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year, 12 Months
Applicable Industries:
Food & Beverage Factory, Farms, Retail
Condition:
New
Usage:
Peanut Oil
Type:
Cold & Hot Pressing Machine
Automatic Grade:
Automatic
Production Capacity:
2-4 kg/time
Place of Origin:
Henan, China
Brand Name:
iMaker
Voltage:
380V/50HZ
Dimension(L*W*H):
1600x1100x1550mm
Weight:
780kg
After-sales Service Provided:
Video technical support
Name:
paprika seeds oil exacting machine
Raw material:
beans, peanut, etc.
Color:
Silver
Heater Power:
2.2kw
Advantage:
High Efficient
Capacity:
80-100kg/h(different material different capacity)
Vacuum pump:
4L
KN Pressure:
1600 KN
Motor Power:
0.75kw
Supply Ability
Supply Ability:
500 Set/Sets per Month nut oil press
Packaging & Delivery
Packaging Details
nut oil press: wooden case
Port
qingdao
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 8 To be negotiated

    Professional Automatic paprika seeds oil exactor paprika seeds oil press exacting machine

  Introduction of paprika seeds oil exacting machine

(A) Structure

The series is mainly set by the automatic control section, press the heating part of the adjustment part, transmission part and vacuum oil filter part of the five components.

1, the automatic control system are: air switch, AC contactor, temperature control device, circuit automatic protection system installed and other components.

2, the press section is heated by the heater, pressing screw and cage bars, body assembly and other components.

3, the transmission part of the spindle and the gear box, pulley, wheel motor and other components.

4, the adjustment part by the adjustment screw to adjust the nut, the child handle, lock nuts and so on ..

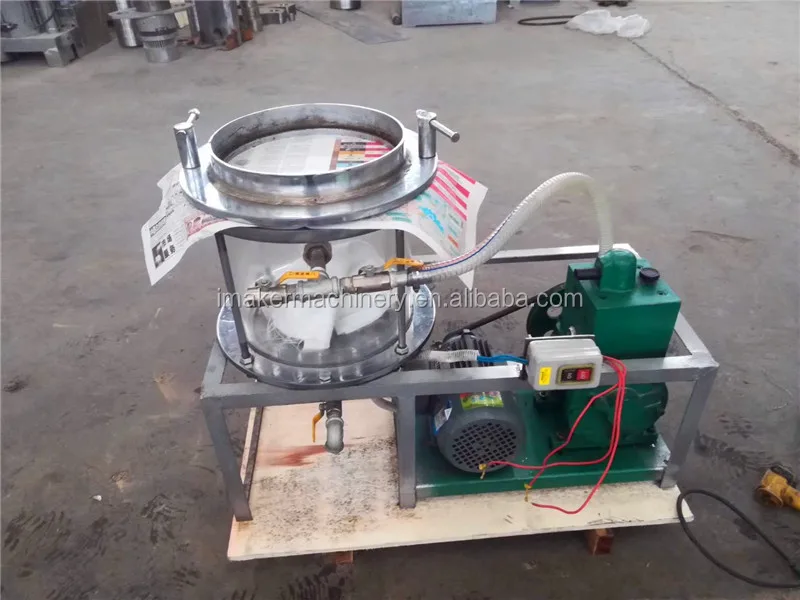

5, part of the oil filter vacuum pumps, piping and other oil drum filter assembly components.

Specification of paprika seeds oil exacting machine

Model

iYL-80

iYL-100

iYL-120

Screw diameter

Φ80mm

Φ100mm

Φ117mm

Screw Rotating Speed

35r/min

37r/min

40r/min

Specification

1600x1100x1550mm

1800x1100x155mm

2200x1480x2100mm

Matched power

5.5kw

7.5kw

11kw

Weight

780 kg

1100 kg

1500 kg

Heater Power

2.2kw

2.2kw

4.2kw

Capacity( sesame)

80-100kg/h

150-200kg/h

250-350kg/h

Vacuum pump

4L

8L

10L

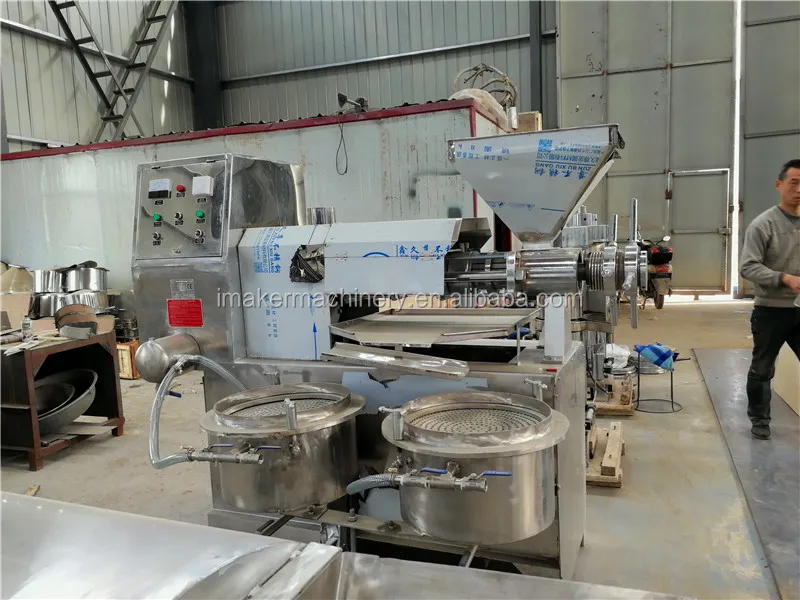

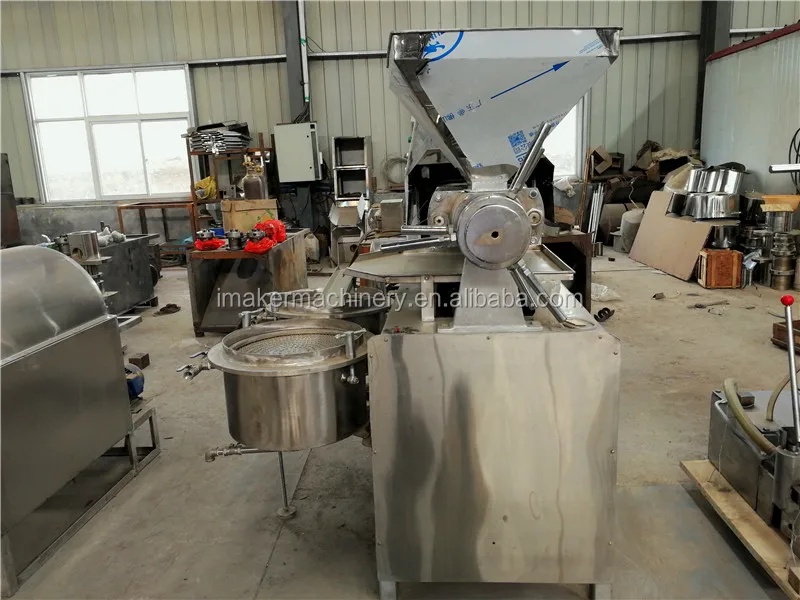

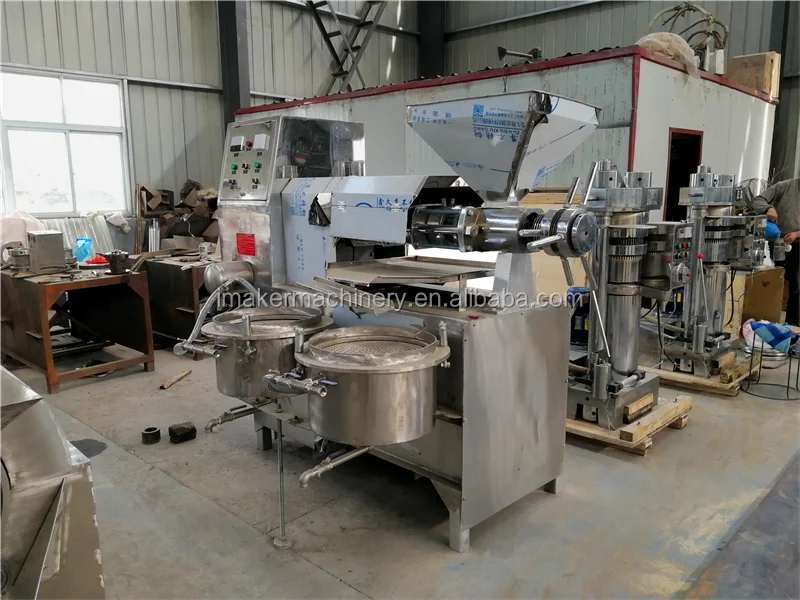

Details of nut oil press

screw oil presser 03.jpgscrew oil presser 04.pngscrew oil presser 05.jpgscrew oil presser 06.jpgscrew oil presser 01.jpgscrew oil presser 02.jpgscrew oil presser 07.jpg

700

Company Information

 Zhengzhou iMaker Machinery CO.,LTD is specialized in chocolate machine,baking machine, flour machine ,snack machine ,fruit and vegetable processing machine,Refrigeration machine, meat machine and some Textile machine etc.

lokma machine price

with well-equipped testing facilities and strong technical force..

lokma machine price

Certifications

OUR CERTIFICATES



lokma machine price
Packaging & Shipping

PACKAGE:

Standard export wooden box packing.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

lokma machine price
